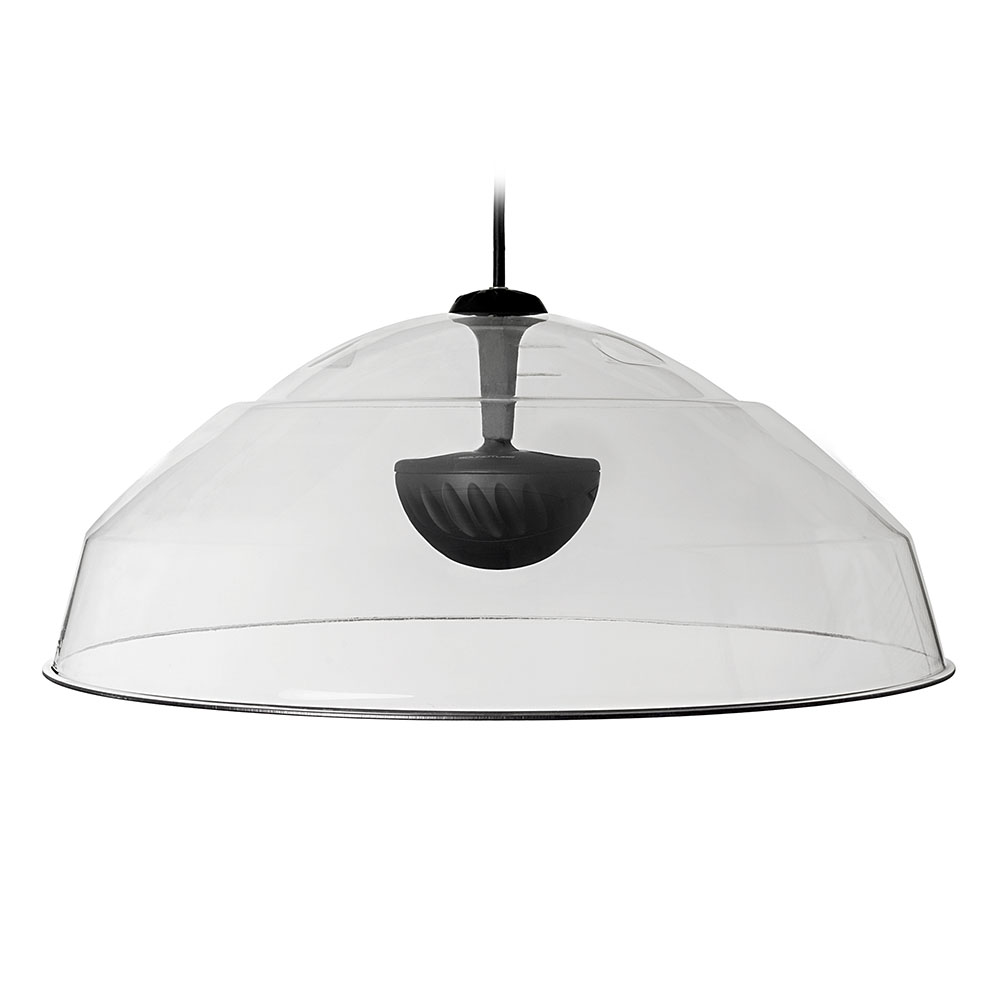

FP6030-II
TWO 1″ STEREO HIGH-DIRECTIVITY
The FP6030-II delivers targeted audio in a unique package by incorporating two full-range, high-performance, 1-inch, concave, aluminum dome, high-excursion drivers with patented 30.75-inch Dual-Parabolic™ sound domes. All models can be wired in either 8 ohm stereo or 4 ohm mono with optional 25/70.7/100-volt transformer available.
| Nominal Impedance | 8 ohm |
| Impedance (min) | 5.4 ohm |
| Sensitivity dB @ 2.83V/1M | 75.0dB |
| Sensitivity dB @ 1W/1M (2) | 75.0dB |
| Frequency Response (± 3 dB) | 170 Hz – 22 kHz (300 Hz with high-pass filter) |
| Frequency Response (±10 dB) | 130 Hz – 22 kHz (200 Hz with high-pass filter) |
| Max. Program Power | 30w |
| Max. Continuous Power RMS | 15w |
| Max. Power SPL @ 1 M | 87.0dB |
| Tap Selector | Optional j-box transformer with 4 position rotary switch |
| 70.7 Volt Transformer Taps | 10w / 85.0dB |
| 100 Volt Transformer Taps (dB) | 10w / 85.0dB |
| 25 Volt Transformer Taps (dB) | 1.25w / 76.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 8 Ohm direct |
| Transducer – Full-Range Driver | 2 x 1 in (25 mm) aluminum, high excursion |
| Coverage Angle (-6 dB @ 2 kHz) raw | 65 |
| Angle | 65 |
| Inputs | 4.6m (15′) hardwire lead |
| Height (SM = Height) | 332.7 mm / 13.10 in |
| Diameter (SM = Width) | 781.1 mm / 30.75 in |
| Weight | 2.5 kg / 5.5 lbs |
| Shipping Weight | 5 kg / 11.0 lbs |
| Accessories Optional | AC-CFP Custom-Printed SoundSleeve™, |
| Packaging | 1 per box |
| Regulatory – CE | approved |
| Regulatory – RoHS | approved |
| Regulatory – CCC | approved |
