SS30

TWO 1″ STEREO HIGH-DIRECTIVITY

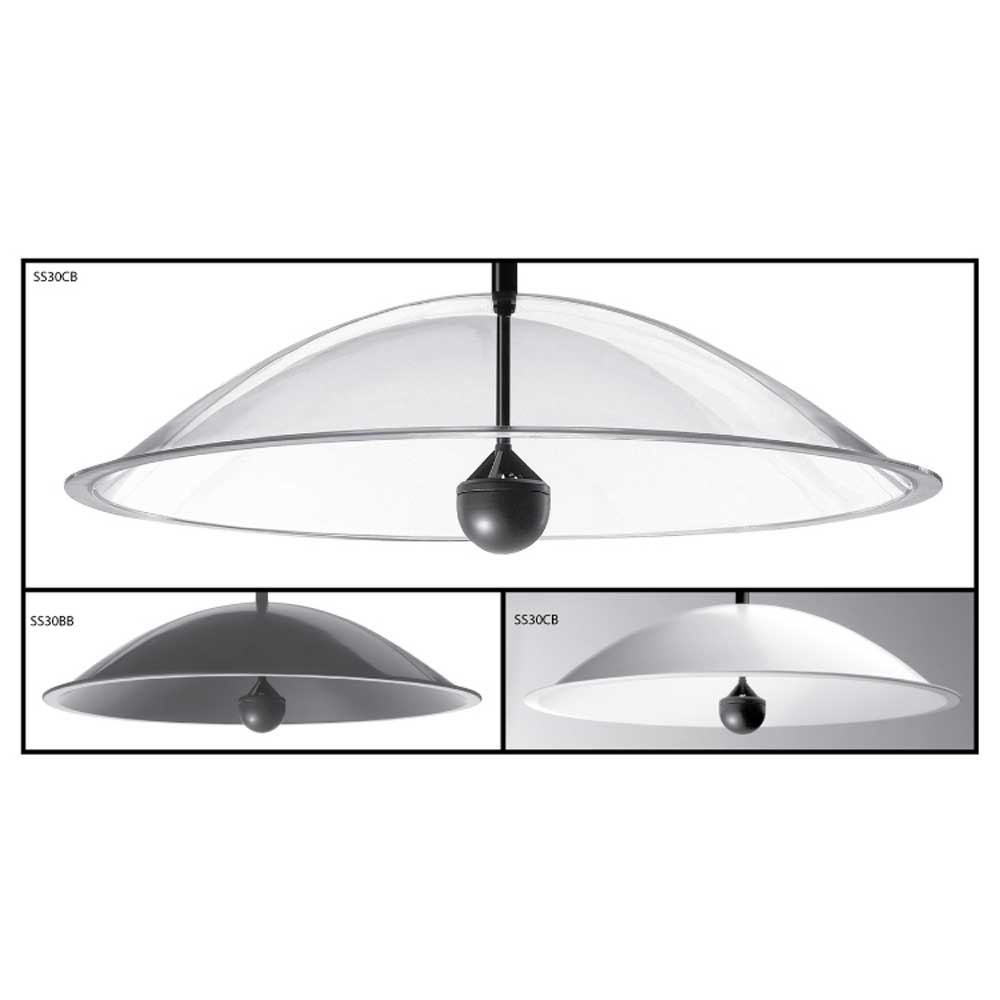

Secret Sound® is a museum-quality parabolic speaker which projects a focused beam of sound onto any exhibit without distracting audio spillover. It was designed by museum professionals to be easily installed, ceiling mounted at any height, and maintenance free, and has been in use by major institutions around the world since 1986.

The speaker housing combines reduced size and elegant design with high-tech materials and performance. Only slightly larger than a baseball, the molded-composite housing provides a strong, clean sound ideally suited for all audio presentations. The composite construction combines strength and durability with improved damping. Secret Sound® is available with a choice of three parabolas: clear, black or white. All units are in stock and can be shipped within 24 hours of our receipt of your order.

Nominal Impedance 4 ohm
Impedance (min) 4.0 ohm
Sensitivity dB @ 2.83V/1M 77.0dB
Sensitivity dB @ 1W/1M (2) 74.0dB
Frequency Response (± 3 dB) 200 Hz – 22 kHz
Frequency Response (±10 dB) 200 Hz – 22 kHz
Max. Continuous Power RMS 15w
Max. Power SPL @ 1 M 92 dB
Tap Selector Wire leads
70.7 Volt Transformer Taps N/A /
100 Volt Transformer Taps (dB) N/A /
25 Volt Transformer Taps (dB) N/A /
Transformer Options Not included
Transducer – Full-Range Driver 2″ High-Directivity
Angle 45°
Colors Black, White, Clear
Inputs Wire lead
Height (SM = Height) 305 mm / 12.00 in
Diameter (SM = Width) 762 mm / 30.00 in
SM Depth (Including Bracket) 292.1 mm / 11.5 in
Weight 4.5 kg / 9.92 lb
Shipping Weight 4.5 kg / 9.92 lb
Accessories Optional MiniMac II 4-Watt, MiniMac II 10-Watt, MacFi-MP, Smart Amp, Activator Buttons, Microwave Sensor, AC-JB10-XFMR & AC-JB20-XFMR
Packaging N/A
Owner’s Manual – color Download Owners Manual
Regulatory – UL N/A
Regulatory – CE N/A
Regulatory – IP N/A
Regulatory – CCC approved

Please contact us for further questions, informations or individual configuration. We look forward to meeting you.
